                                Features of the GET

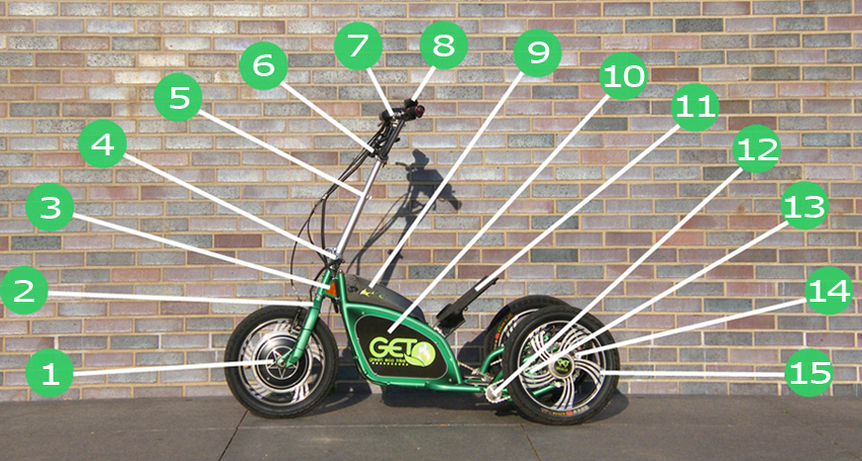

Image Map
1. Motor wheel actually is a wheel with an integrated motor in its hub. The standard option is 500W motor. The most powerful motor available is 750W. Anything above it would strip the bicycle title of the GET and turn it into moped or scooter. Trust us on this - it has more than plenty of power to drive you happy.
A bracket attachment

2
. The universal bracket allows you to install a front baby seat, a basket or a golf bag attachment.
3. The GET has front and rear amber LED turn signals. In addition it has red rear and stop signals. the standard front light is not shown here because we use optional powerful rechargeable LED flashlight. Connector for the head light is a standard option and the light is included with a mounting bracket.
The right rear and turn signals are on
Hinge

4.
Easy to fold and unfold a steering column hinge.

5
.
You can adjust in a few seconds  position of the handlebar.
Quick height set adjustment
Rechargeable front lignt
MP3 player with an USB charger
Bike computer
6. We planning to offer you a lot of extras and you can install anything you like as well. Some popular options we use included a portable MP3 player with a crystal clear sound, the mentioned above rechargeable LED flashlight, onboard camera, bike computer etc.
7. The connector's box is a very cool feature. It's a one point access of changing or testing any electrical component. Let's say you need to change a broken throttle. If you have a screwdriver, in two-three minutes your job will be done without any special skills or knowledge! We planning to place this box inside of the handle bar open space and install turn signals in it. This image represents a production prototype.
8. After carefully tested both a twist throttle and a thumb throttle we decided to install a thumb throttle as a standard option. You still can order a twist throttle and install it yourself (remember that feature a "two-three minutes job"?). The reason for that is very simple - if you forget to turn of the battery key someone you are talking to can simply twist the throttle out of curiosity and your trike will jump forward like a crazy horse, too dangerous.
LED indicators on a throttle
Battery is fully charged

9
.
High capacity LiFePo4 battery pack - 48V10AH. Battery has three key positions key, can be removed from a trike's frame, and has an integrated controller and an electric horn. A standard 2A 48V charger for 110/220V is included, 4A charger is optional.

10
. We can customize the side panel and make it very personal. When you buy the GETs for your company, they can carry your logo or be your main advertising platform. We can guaranty a lot of
attention!
Custom logo
11. Casted and CNC machined aluminum pedals has non slippery top surface and two bumpers on the bottom to absorb the impact.
Side sprocket
12. You can order and install the side sprockets with a different number of teeth. It will change the overall ratio of the transmission and you can get more torque and climbing ability or faster speed while pedaling. The standard sprockets have an optimal performance right now.

13
. This is a unique feature of the GET. You can set a frame clearance in desired position above the ground by moving adjustment side brackets. Image shows the lowest possible position.

Frame clearence adjustment
Disk brakes

14
. Rear disk brakes add extra safety to your ride.
15. Very strong no maintenance aluminum wheels can handle up to 300lb each. Their matching sports-like style contributes the most to the trike's head turning ability. You can order an optional 5 seconds wheels removal feature.
Strong aluminum wheels
